Lexus GX470 / GX460 Front Struts – Replacement or Fully Assembled
Replacement front struts for the Lexus GX470 and GX460 factory electronic suspension.
Available as replacement struts only or as complete fully assembled front strut assemblies
with new coil springs, top hats/strut mounts, bushings, and struts.
The fully assembled option arrives ready to bolt into your GX, eliminating the need to disassemble your original
struts or transfer the original coil springs and top hats.
These non-electronic front struts directly replace aging or failed Lexus electronically controlled front struts
while providing excellent ride quality, long-term reliability, and a significantly lower replacement cost than
factory Lexus electronic struts.
FREE SHIPPING
Choose Your Front Strut Configuration

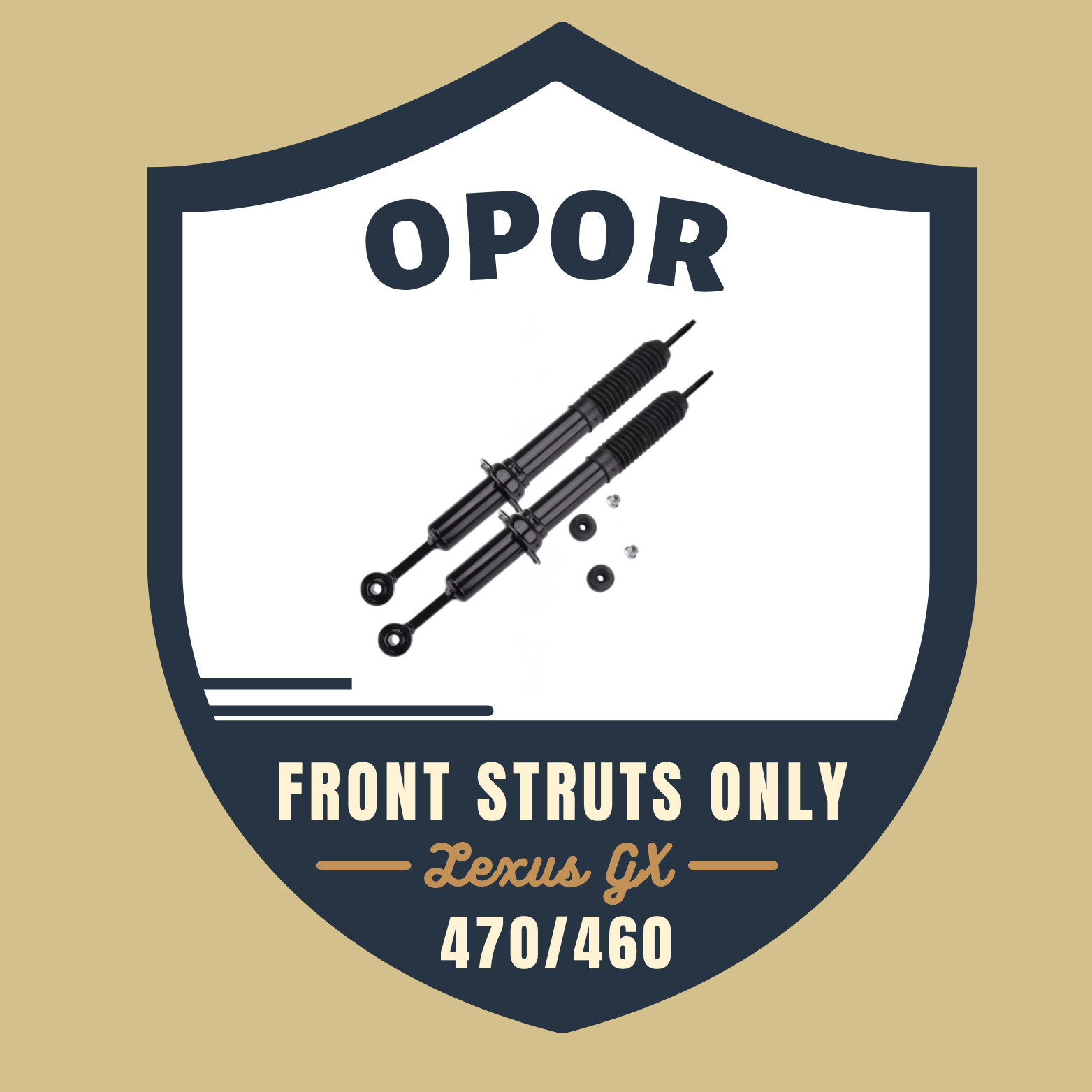

Replacement Struts Only
Choose this option if you want to replace the original Lexus electronic front struts while reusing your existing
front coil springs and top hats/strut mounts.
Replacement Struts Only includes:
- Pair of Lexus GX470 / GX460 front replacement struts
- New strut bushing kits
This option is ideal for vehicles with reusable factory coil springs and strut mounts or for customers who already
have the springs and top hats they want to use.

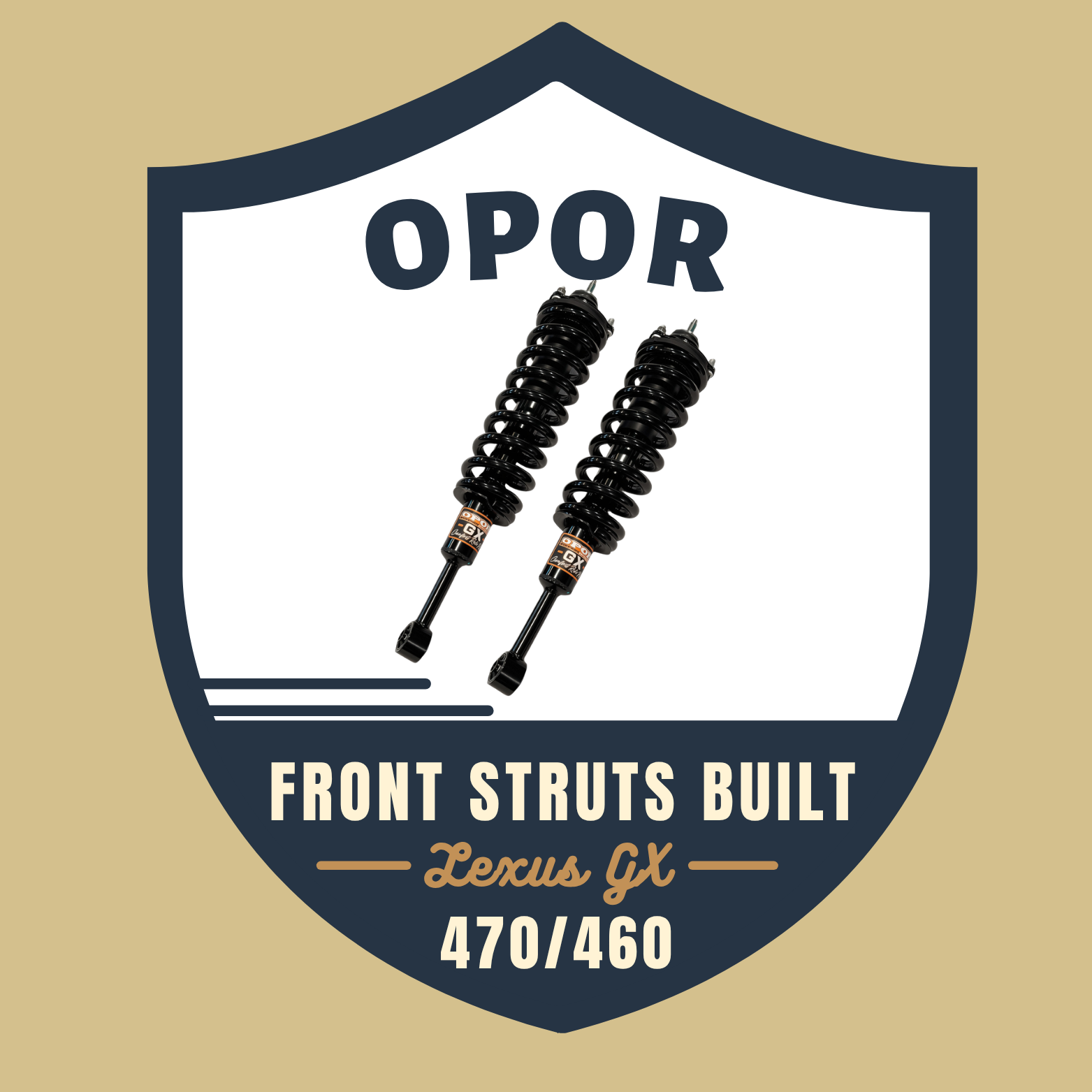

Fully Assembled Struts with Coil Springs & Top Hats
Choose the Fully Assembled Struts option for a complete pair of ready-to-install front strut
assemblies.
Each assembly includes a new replacement strut, new front coil spring, new top hat/strut mount, and new bushings.
The assemblies arrive complete and ready to bolt into your Lexus GX470 or GX460.
Fully Assembled Struts include:
- Pair of Lexus GX470 / GX460 front replacement struts
- New front coil springs
- New top hats / strut mounts
- New strut bushings
- Fully assembled and ready to install
With the fully assembled option, there is no need to transfer your old coil springs or top hats to the new struts.
This reduces installation time and eliminates the need to disassemble the original front strut assemblies.
This is an especially good option for higher-mileage GX470 and GX460 vehicles where the original struts,
springs, bushings, and strut mounts have accumulated years of use.
Vehicle Fitment
- Lexus GX470
- Lexus GX460
- Designed to replace the factory electronically controlled front struts
- Direct bolt-in installation using factory mounting locations
- Works with stock-height suspension applications
- Works with the Metal-tech 4x4 Stage 3 rear coil conversion system
- Works with the OPOR GX470 / GX460 front leveling kit
Why Replace the Factory Lexus Electronic Struts?
The factory Lexus GX470 and GX460 electronic front struts become expensive to replace as the suspension ages.
This kit eliminates the electronically controlled front struts and replaces them with a simpler,
non-electronic suspension system.
The result is a reliable front suspension with excellent ride quality, lower long-term replacement cost,
and easier future servicing.
The replacement system uses the factory mounting locations and does not require permanent modification to the vehicle.
The conversion can be returned to the original electronic suspension configuration in the future if desired.
Features
- Comfort Plus ride quality
- Direct replacement for aging or failed Lexus electronic front struts
- Available as replacement struts only or complete assembled struts
- Fully assembled option includes new coil springs and top hats
- Fully assembled option significantly reduces installation time
- Direct bolt-in installation
- No permanent vehicle modification required
- Compatible with Metal-tech 4x4 Stage 3 rear coil conversion kits
- Compatible with OPOR GX470 / GX460 front leveling kit
- No dash warning lights when installed following our instructions
- Free installation technical support from Metal-tech 4x4
- FREE SHIPPING
- Limited Lifetime Warranty
Complete Front & Rear Suspension Package
Looking to replace both the front struts and rear shocks on your Lexus GX470 or GX460?
We also offer a discounted complete front and rear suspension package.
GX470 / GX460 Replacement Front Strut & Rear Shock Kit – Comfort Ride Plus
Compatible with the Metal-tech 4x4 Stage 3 Rear Coil Conversion
These front struts work directly with the Metal-tech 4x4 Stage 3 rear air suspension conversion kit.
The Stage 3 conversion eliminates the aging factory Lexus rear airbag suspension and replaces it with
custom US-made coil springs and our in-house CNC-machined mounting system.
The Metal-tech 4x4 conversion maintains Toyota-standard spring mounting dimensions, allowing future suspension
upgrades and lift components to bolt into the vehicle normally.
Metal-tech 4x4 GX470 Stage 3 Rear Coil Conversion Kit
Want to Level Your GX470 or GX460?
Lexus and Toyota designed the GX suspension with the rear of the vehicle sitting slightly higher than the front.
For customers who prefer a more level stance, the OPOR GX470 / GX460 front leveling kit works directly with
these replacement front struts.
GX470 / GX460 Front Leveling Kit
Installation
Any qualified automotive repair or suspension shop can install this kit. No Lexus-specific suspension tools
or electronic suspension programming skills are required.
The Fully Assembled Strut option provides the fastest installation because the new coil springs,
top hats, bushings, and struts are already assembled. Remove the original front strut assemblies and install
the new complete assemblies.
The Replacement Struts Only option requires the original or replacement coil springs and top hats
to be installed onto the new struts before installation.
Frequently Asked Questions
Are these complete front strut assemblies for a Lexus GX470 or GX460?
Yes. Select the Fully Assembled Struts with Coil Springs & Top Hats option to receive
complete front strut assemblies with new struts, coil springs, top hats/strut mounts, and bushings.
They arrive assembled and ready to install.
Can I purchase just the replacement front struts?
Yes. Select the Replacement Struts Only option if you want to reuse your existing coil springs
and top hats/strut mounts.
Do I need to transfer my original coil springs?
Not with the Fully Assembled option. New front coil springs are already installed on the new strut assemblies.
Do I need to reuse my original top hats or strut mounts?
Not with the Fully Assembled option. New top hats/strut mounts are included and already installed.
Do these struts replace the Lexus electronic front suspension?
Yes. These non-electronic front struts are designed to directly replace the factory Lexus electronically
controlled front struts.
Will replacing the electronic struts cause suspension warning lights?
No dash warning lights should be present when the system is installed following the Metal-tech 4x4 installation instructions.
Can the vehicle be returned to the original electronic suspension later?
Yes. The conversion does not permanently modify the vehicle and is 100% reversible.
Do these front struts work with a rear coil spring conversion?
Yes. These front struts work directly with the Metal-tech 4x4 Stage 3 rear airbag-to-coil spring conversion system.
Do these struts work with the OPOR front leveling kit?
Yes. These replacement front struts are compatible with the OPOR GX470 / GX460 front leveling kit.
Important Product Notes
Electronic suspension: This kit replaces the stock electronically adjustable front suspension
with a non-electronic system. Installation disables the electronic front suspension function when installed
according to our instructions. The conversion is 100% reversible.
Product appearance: The color and appearance of the struts may vary from product photos due
to manufacturer production updates. These cosmetic differences do not affect fitment or function.
