Metal Tech FJ Cruiser/4Runner Offset Rear Lower Links

$499.95
SKU:
MT-120/150-44125 1
  • Description
  • Additional Information

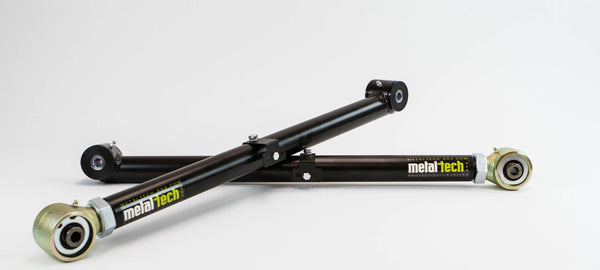

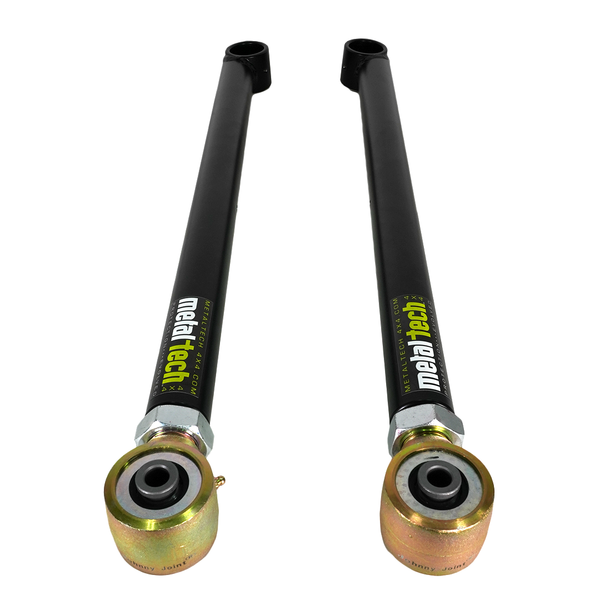

Metal Tech 4x4's offset lower links are designed for the FJ Cruiser and 4Runner featuring Currie Johnny Joints.

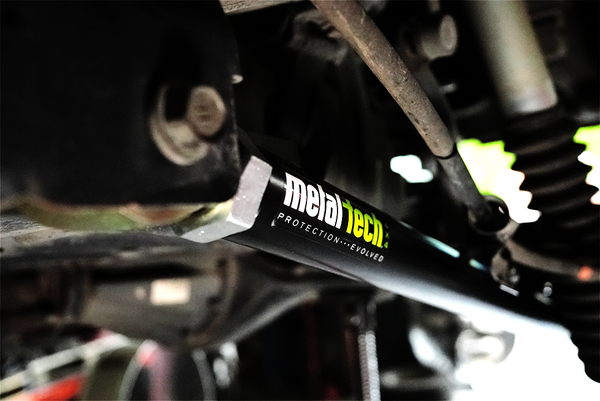

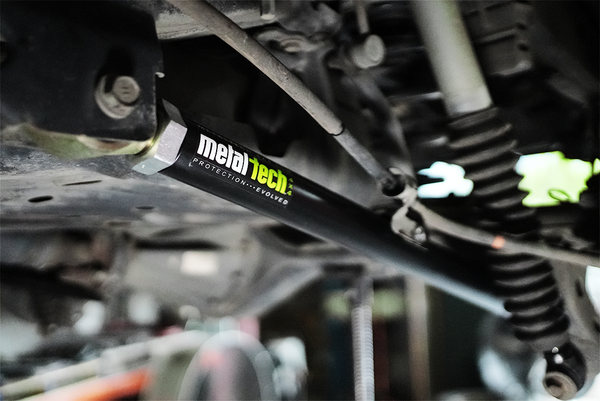

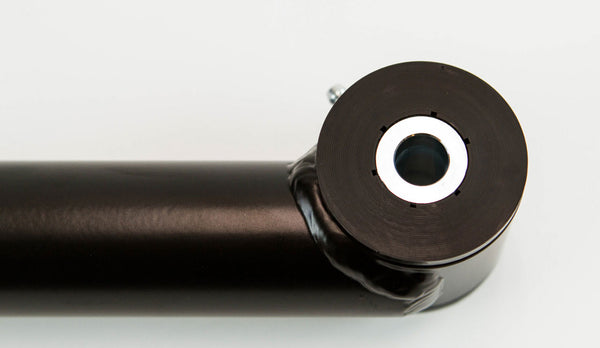

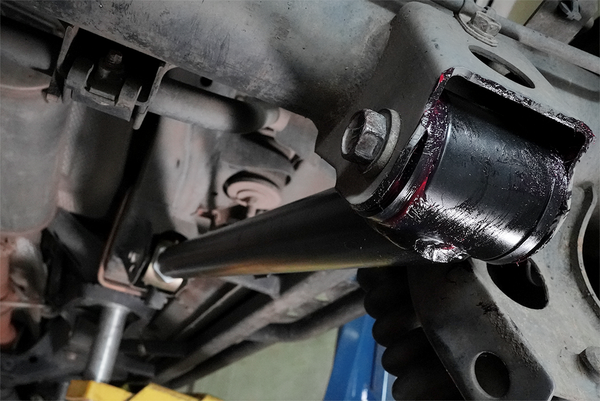

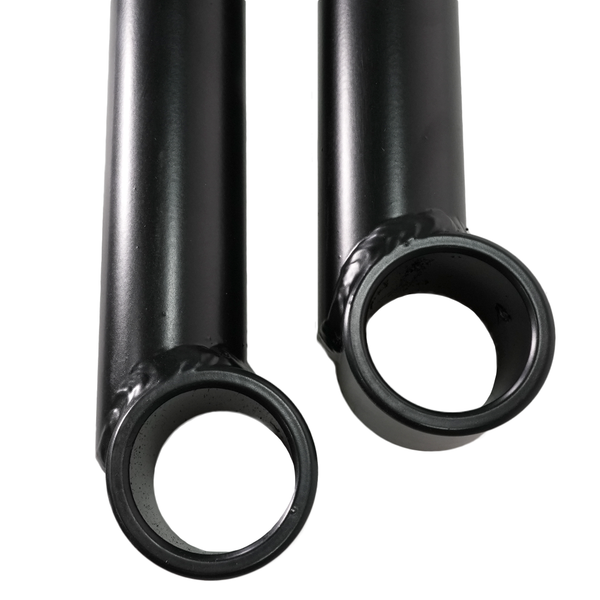

When Metal Tech 4x4 designed their rear long travel suspension system for the FJ Cruiser/4Runner, we quickly realized a flaw in the Toyota suspension links' design.  With the increased suspension travel the links contact the axle housing not allowing for full freedom of movement for the axle.  By doing an offset notch we simply moved the bushing to sit higher on the link tube which in turn provides greater clearance between the axle housing and the link.  Our offset lower links will not bind a full articulation and vertical travel when used with our rear long travel system and other 2" lifts.  Also, another benefit to the offset links is a smooth sliding transition when rubbing up against an obstacle.  Links with a standard notch have an uneven sliding surface which can cause damage to the axle mount, while the offset notch allows the link to sit lower allowing full protection against rock, trees, and other objects.

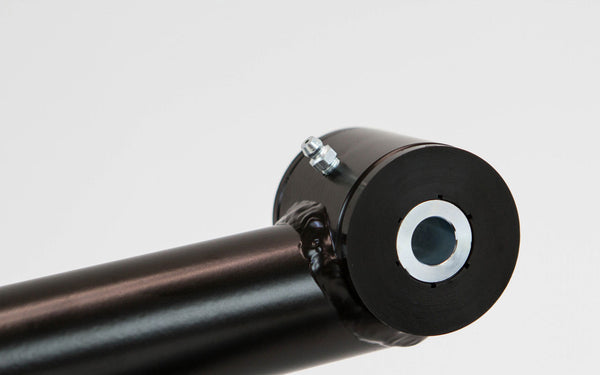

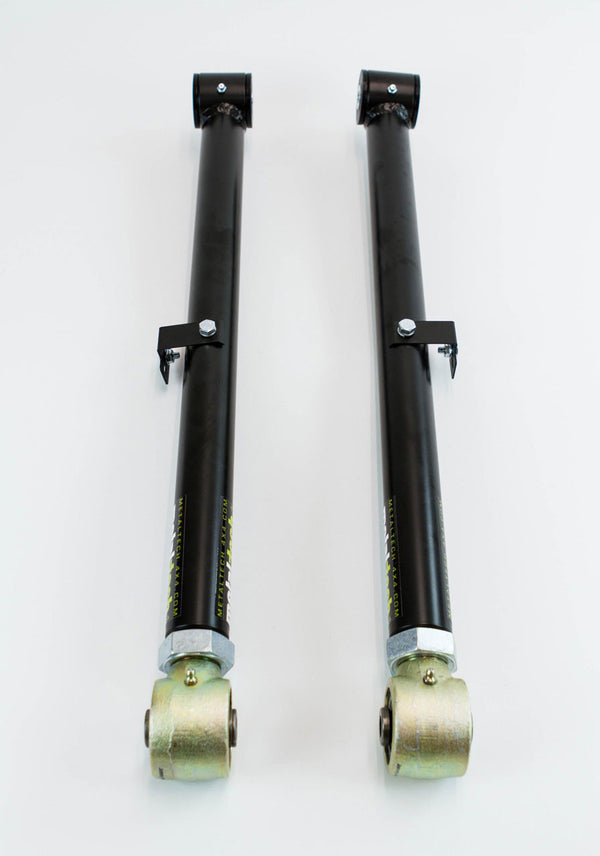

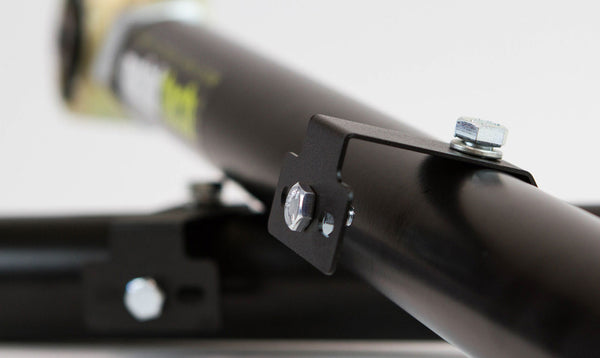

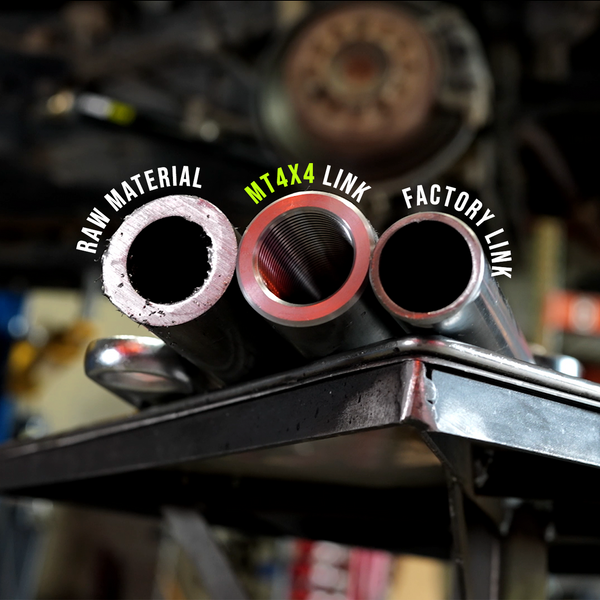

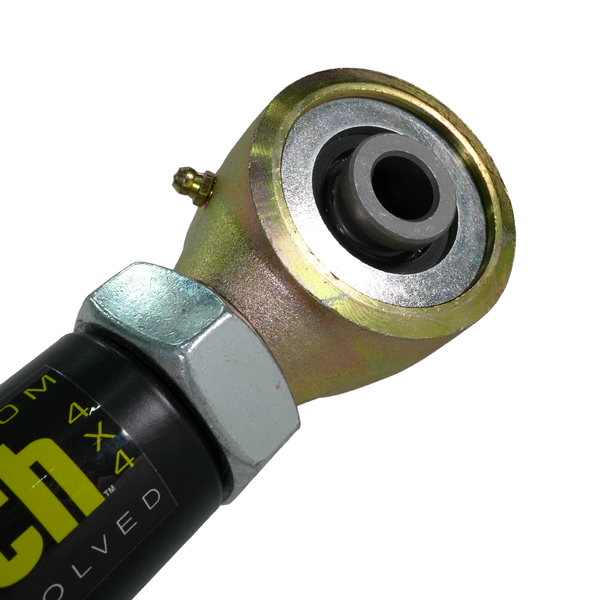

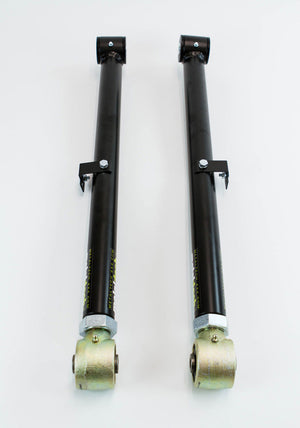

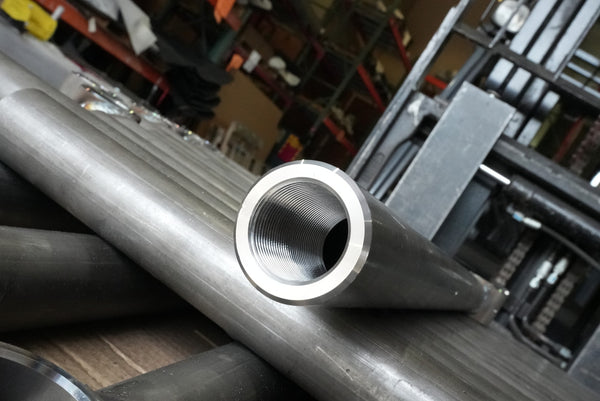

Metal Tech 4x4 offset lower links are made out of 1.75 x .290 DOM tubing, cnc machined to accept Currie 2 1/2" Johnny Joints, poly urethane bushings, 1" DOM sleeve with .25" wall support and a grease zerk for maintenance.  All of our links come with the hardware necessary to mount the e-brake cable to the link.  These suspension links have a limited lifetime warranty on the structure of the link (the tubing and the bushing shell) this does not cover the wear items such as the polyurethane bushings, johnny joint and grease zerks.  (sold as a pair)

Estimated Install Time: 1.5 hours


Metal Tech Offset Rear Lower Links fits the following vehicle(s):
  • 2007-2014 Toyota FJ Cruiser
  • 2003-2021 Toyota 4Runner

100% rebuildable using the RockJock/Currie rebuild kit: #CE09110RK and replacement #MT-44109 bushings from Metal-tech 4x4

Make:
Toyota
Model:
FJ Cruiser
Model:
4Runner
Year:
2003
Year:
2004
Year:
2005
Year:
2006
Year:
2007
Year:
2008
Year:
2009
Year:
2010
Year:
2011
Year:
2012
Year:
2013
Year:
2014
Year:
2015
Year:
2016
Year:
2017
Year:
2018
Year:
2019
