Overview
ICON Vehicle Dynamics 2024+ Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road.
This Stage 2 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle feel through the range of travel. These coilovers are height adjustable from 1.25-3" of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations.
The combination of front differential drop brackets and ICON's specifically designed coilover lengths maximizes the available front suspension travel and helps prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
The included ICON tubular upper control arm kit is designed to improve the overall performance of the 2024-2026 Toyota Tacoma with corrected front-end geometry, built-in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
The rear dual rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent load support, bottoming resistance, and superior off-road performance. These rear springs are designed to provide approximately 0.5" of rear lift over stock with approximately 600 lbs of additional weight added to the rear, providing a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles.
ICON 2.0 Aluminum Series internal reservoir rear shocks utilize vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2024-2026 Toyota Tacoma Stage 2 suspension system is an excellent choice for drivers looking to enhance the capabilities of their pickup both on the road and off-road.
Key Features
- Vehicle-specific tuned front and rear shocks for superior shock damping and control.
- Increased wheel travel and improved ride quality over stock.
- Front differential drop provides better maximum operating angles for CV joints and maximizes available wheel travel on 4WD models.
- Adjustable coilovers provide 1.25-3" of front lift height over stock.
- Tubular upper control arms (UCAs) provide added strength, durability, and alignment correction for improved drivability.
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint PRO with 90 degrees of total articulation.
- Dual rate rear coil springs improve performance and ride quality while providing approximately 0.5" of rear lift over stock with approximately 600 lbs of additional rear weight.
- 6061 aircraft-grade aluminum CNC-machined components.
- Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts.
- ICON-engineered front and rear coil springs.
- FK Rod End bearings for extended longevity and minimal deflection.
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts.

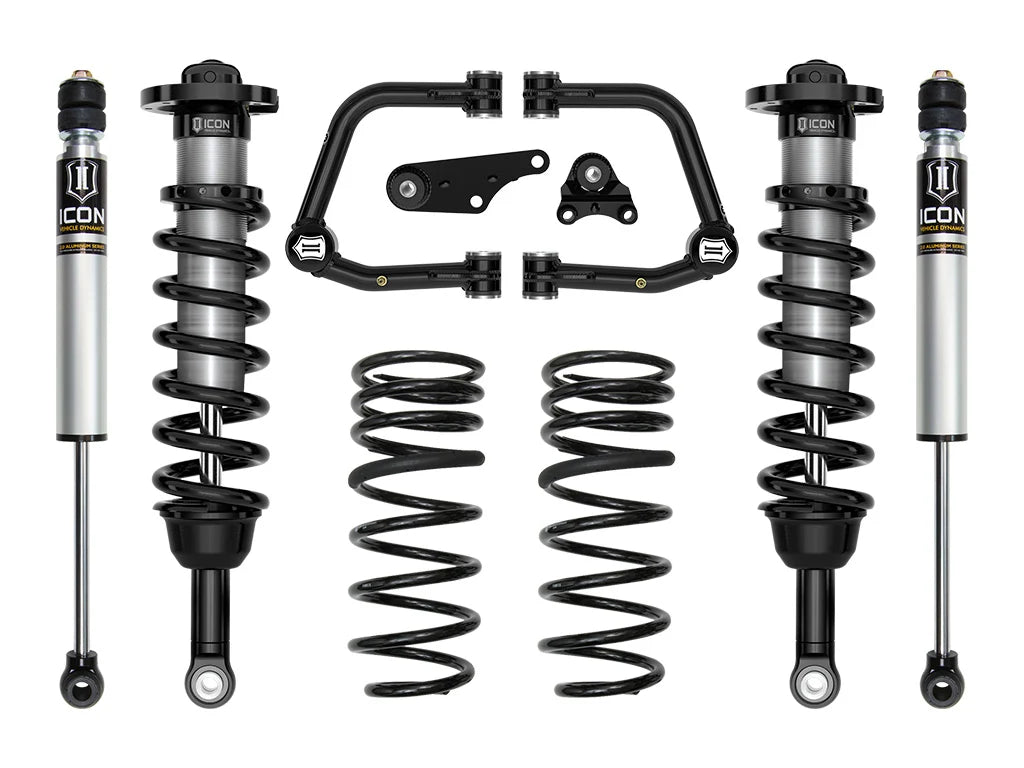

*Note: Stock photo used.
