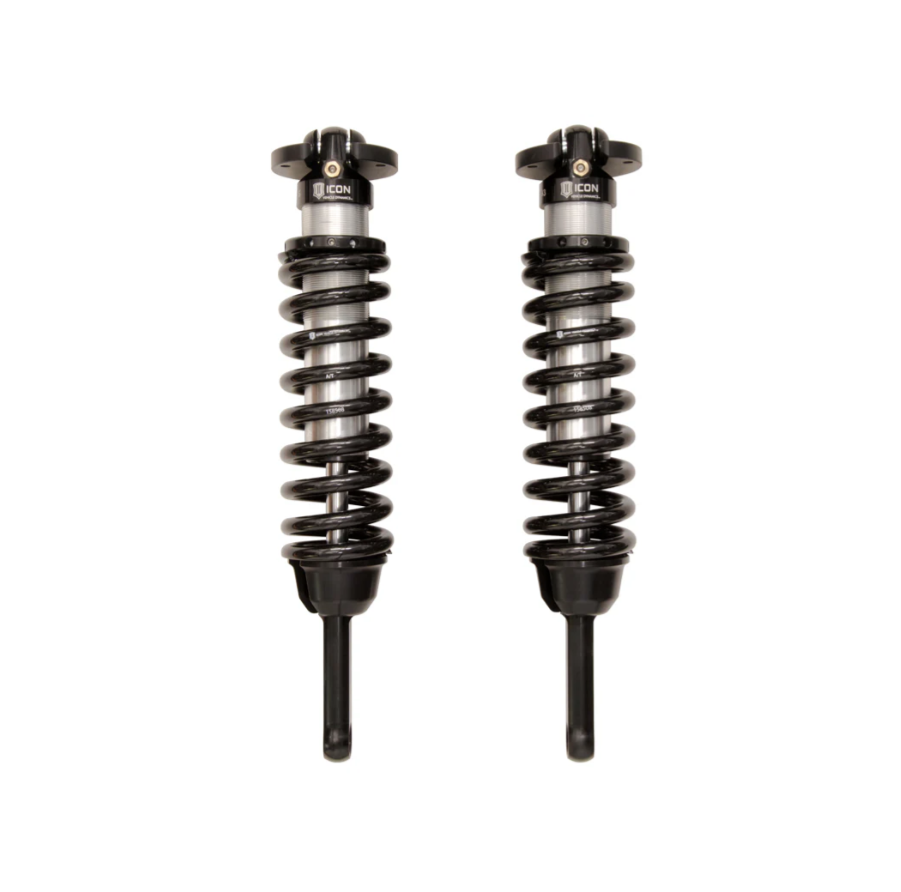

ICON 2.5 VS Series Front Coilovers | 2005–2023 Toyota Tacoma

Upgrade the front suspension of your Toyota Tacoma with ICON Vehicle Dynamics 2.5 VS Series internal reservoir coilovers—engineered to deliver increased wheel travel, improved ride quality, and superior control both on and off-road. Designed specifically for 2005–2023 Toyota Tacoma platforms, these adjustable coilovers provide precise lift tuning while maintaining balanced suspension performance.

With up to 0–3.5” of lift (2005–2015) or 0–2.75” of lift (2016–2023), these coilovers allow for larger tire fitment and improved ground clearance without sacrificing drivability. ICON’s vehicle-specific valving and increased piston area deliver consistent damping performance across a wide range of terrain—from daily driving to aggressive off-road use.

The 2.5” diameter shock body increases oil volume and heat dissipation, reducing fade and maintaining performance under load. Extended travel design improves suspension articulation but requires aftermarket upper control arms for proper geometry and reliability.

For optimal performance, pair these front coilovers with ICON 2.0 or 2.5 Aluminum Series rear shocks to maintain balanced handling and control across the entire vehicle.

Key Features

• Adjustable lift height: 0–3.5” (2005–2015) or 0–2.75” (2016–2023)
• 2.5” shock body increases oil capacity for improved cooling and fade resistance
• Vehicle-specific valving for optimal ride quality on and off-road
• Extended travel design for increased wheel travel and articulation
• Improved low-speed damping reduces body roll and enhances on-road stability
• High-quality coil springs with lifetime guarantee against sagging or breakage
• 7/8” hardened shaft for strength and durability
• FK rod end bearings for precise control and long service life
• Fully serviceable – rebuildable and revalveable for long-term performance
• Bolt-on installation using factory mounting locations

Fitment & Requirements

• Fits 2005–2023 Toyota Tacoma
• Aftermarket upper control arms required for extended travel applications
• Compatible with OEM wheels and tires

Recommended Wheel & Tire Setup

• 17x8.5 wheel with 4.75” backspacing / 0mm offset
• 18x9 wheel with 5.00” backspacing / 0mm offset
• 20x9 wheel with 5.00” backspacing / 0mm offset
• Recommended tire size: 33” x 11.50” (trimming may be required)

Technical Notes

• Extended travel requires upgraded upper control arms
• 700 lb/in spring option available for heavily equipped vehicles
• Coilover heights based on stock vehicle weight
• 2016–2023 Tacoma lift range limited to 0–2.75”
• TRD Pro (2017–2023) lift range: 0–1.25”
• Bump stop spacer kit can increase preload beyond standard range
• ADAS recalibration required after installation (2016+ models)
• Not compatible with 2WD Tacoma 5-lug models

Specifications

Note: California residents see Prop 65 warning.
